All-in-one 2.4G active RFID reader VI-S710

The integrated 2.4G active RFID reader is a 2.4G active RFID reader with integrated antenna and reader. It uses the 2.4GHz ISM frequency band and wireless communication technology to collect the identification information of the target tag to realize data collection. It can be widely used in the positioning of personnel and assets and the collection of wireless sensor data.

Enquiry

Datasheet

FEATURES

SPECIFICATIONS

Product Model	VI-S710
Performance Indicators
Product Features	Uses 2.4G ISM free channel
	Can read more than 100 tags at the same time
	Can work in complex environments
Main Application
Data collection	Applied to 2.4G RFID, sensor information and other data collection
Asset management	Applied to real-time monitoring asset solutions
Access control and identity recognition	Combined with active and semi-active tags, it can form an access control system to manage the identity and safety of people entering and leaving
Other uses
Mechanical and electrical properties
Product size	225mm x225mm x90mm
Interface	TCP/IP (supports PoE power supply)
	Power interface (DC12V)
	RS232C (serial line)
Product Parameters
2.4GHz channel operating frequency band	2400 MHz ~ 2483.5 MHz, ISM band
Modulation mode	GFSK
Number of channels	40
Channel bandwidth	2M
Air rate	1Mb/S
RF power	< 1mW
Air interface protocol	Custom
Communication mode	One-way read-only
Recognition speed	100Km/h
Anti-collision performance	＞100 tags/second
Antenna gain	8dbi
RF identification distance	>100m
Communication interface	RS232, RJ45
Anti-collision performance	Read ＞100PCS tags at the same time
RF power	<1mW
Input voltage	DC 7.5V～18V
Maximum operating current	< 150mA
Environmental parameters
Operating temperature	-20 ℃ ～ +65 ℃
Storage temperature	-40 ℃ ～ +85 ℃
	Protection grade IP67

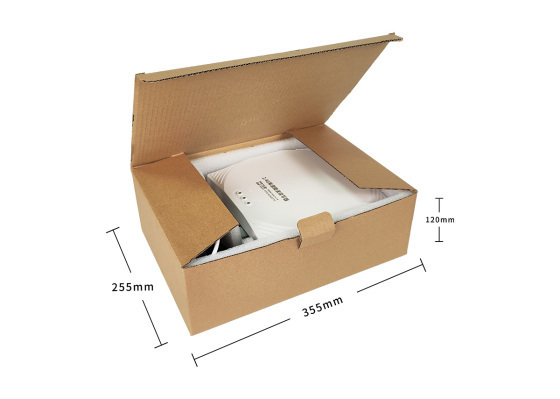

PACKING LIST

DOWNLOAD

VI-S710.pdf
