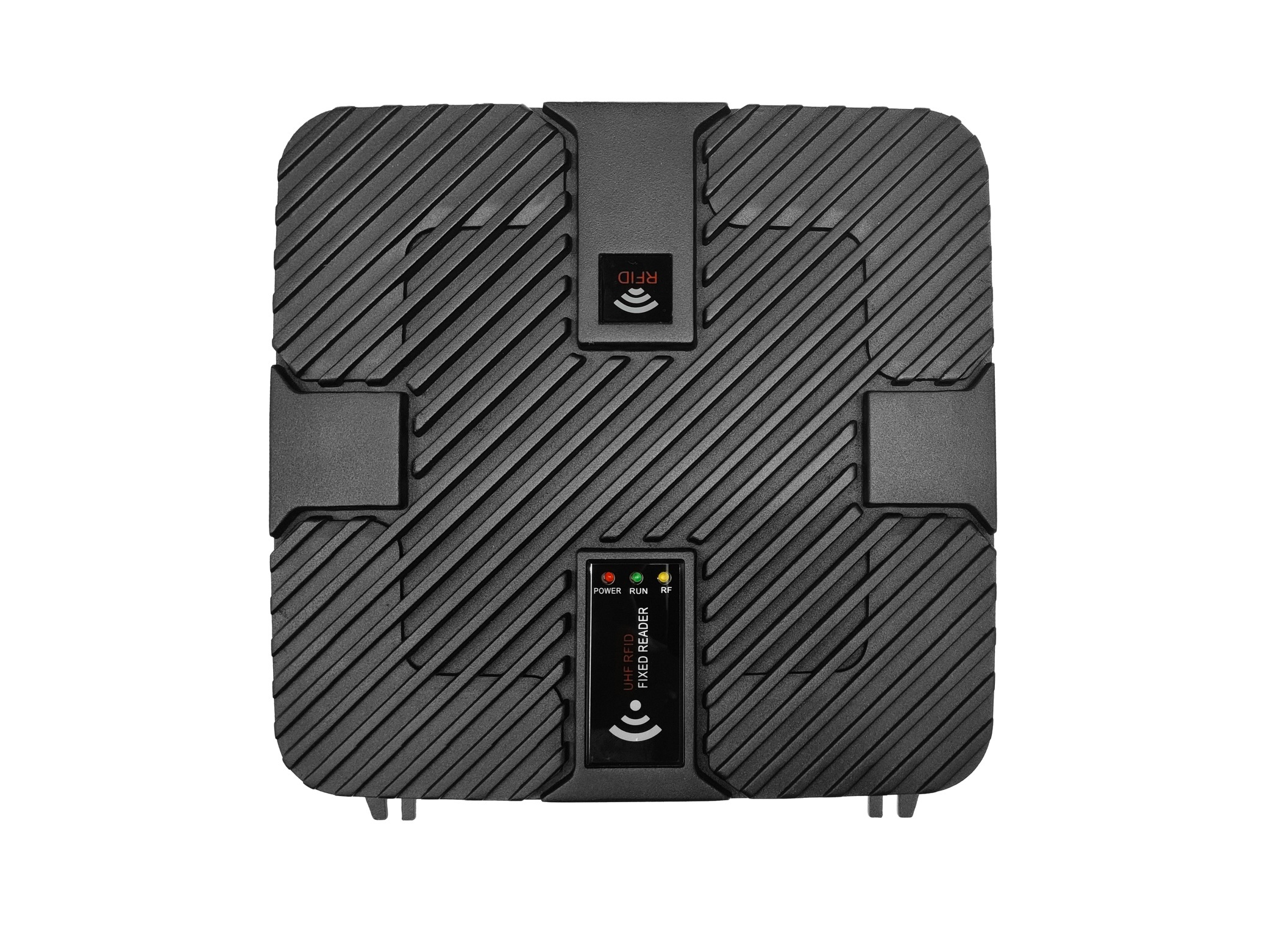

8-Port Linux UHF RFID Fixed Reader VF-987

Shell adopt high strength aluminum CNC, rugged and artistic, PCB is high density 6 layer board design, good for working under harsh environment for long period.

LEARN MORE

VF-L987 Linux System RFID Fixed Reader

The housing is made of high-strength die-cast aluminum alloy for efficient heat dissipation, and the PCB features a high-density 6-layer (immersion gold) design. Utilizes the Impinj E710 RF chip for excellent stability and robust multi-tag long-range recognition performance. Utilizes the Rockchip RK3568 processor, a quad-core Cortex-A55 processor with a clock speed of 2.0 GHz. 2GB RAM + 16GB ROM storage, with higher capacity options available upon request. Operating system: Linux 4.19, highly scalable and customizable. Standard interfaces: RS232, RS485, and RJ45; optional interfaces: Wiegand, Wi-Fi, Bluetooth, and 4/5G (optional). Supports MQTT (HTTPS) protocol and remote configuration via the web. Supports 4/8 external antenna interfaces; supports RSSI and tag data filtering. Adjustable output power from 0 to 33 dBm, with a peak tag inventory rate of > 950 tags/second. Supports multiple operating modes: active, command, and trigger. Provides 4 optically isolated inputs. Four optically isolated I/O outputs facilitate product integration. It is an ideal device for warehousing, logistics, supply chain management, fixed asset management, personnel and vehicle management, and production line manufacturing.

LEARN MORE
